ACCESS CONTROL Free
unlimited Gate or door openings
This unit is designed to
receive commands from a mobile phone to access or operate a roller shutter,
door latch. The owner or Master can
allow other phones, (up to 2000 numbers) to become members so that
they can also have regulated Entry access but not control. They can also be rostered
for emergency calls. Members
can also be restricted to access hours and 365 days calendar holidays. ACTIVATE
MACHINERY AND LIGHTING Free unlimited
machinery activation Security floodlight or start a
machine remotely with the security that only the owner’s mobile phone
can activate it. There are two output relays
which can be operated for these tasks. SECURITY
& FAILURE REPORTS Can be used at an unattended
substation for access control and equipment malfunction reporting. Four separate input can be
triggered to report Machinery, Power fail, Fire or Water level, Unauthorised
Entry, can all be reported as a SMS alarm message to the Master Phone or Base
unit. Power fail is in addition to 4 trigger inputs. Programs and design changes to
suit your special requirements can be quickly developed and can be updated by
email for flash update as required.
IN

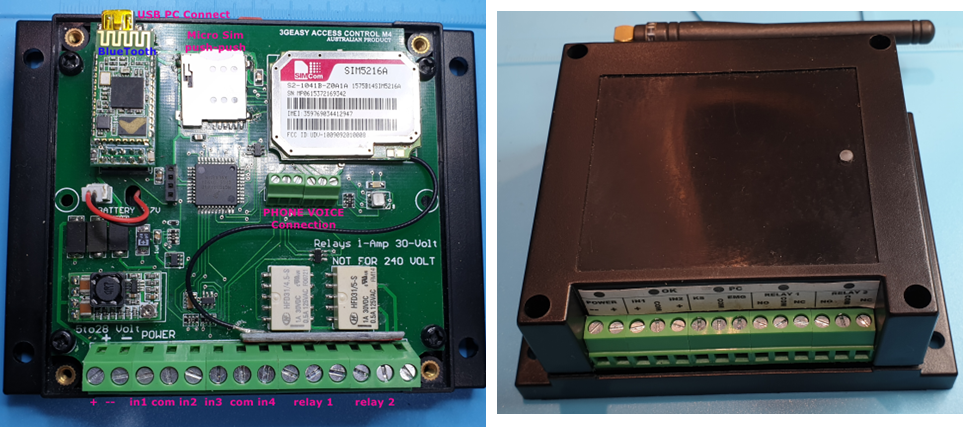

THE PACKAGE 1
x Control Module in Case with Sim5216A (for Optus request Sim5216E) 1 x 500ma 3.7v li-ion battery
not connected 1 x Internal antenna, 1 x
external antenna CD
and Instructions and internet https://www.3geasy.com.au Optional
extras are USB for PC connection or BlueTooth to PC or Smart phone for complex programming or
preload and data backup. Optional
extras are USB for PC connection or BlueTooth to PC or Smart phone for complex programming or
preload and data backup. 1 x Aldi
Telstra $5 prepaid Simcard (Inserted) Included is unlimited incoming calls
for 1 year and 40 outgoing report calls via Telstra mobile network:
Prepay can be used to increase SMS outgoing by $15 for 125 calls @ 12c each
and unlimited incoming calls. QUICK LIST OF FUNCTION 4 x Alarm Inputs include KS + Emergency Button
function also AC Fail Input triggers are by Loop, Break or (EOL) end of
line terminated Security 2 x Outputs 30V@ 2Amp Functions and Options
1. Free incoming calls to operate 2 x Relays for Access
or Machinery on Mobile Phone Network Providers 3G+ Telstra, Optus or
Vodaphone. Caller ID used for security.
2. Quick Startup, Owner takes possession simply by SMS
“start” and alarm calls are automatically setup for
Access and 2 x Inputs for Alarm reports + Key switch and Optional Speaker
phone with Emergency call button.
3. Alarm labels and Address are reported by SMS which
gives a phone record.
4. Power is 5v to 28volt terminal input (250ma min),
even phone charger to usb can supply.
5. Power Fail and Restore Report; Standby
battery 4hours
6. Up to 2000 Auxiliary Members (or Staff)
can be enrolled for Entry access by Phone ID. Simple “join”
message or by Master SMS message.
7. Members can be restricted to Days and Entry Hours
also 1year Holiday calendar.
8. Key switch input from Alarm etc to enable
normal entry or disable alarms.
9. Members (Up to 10) can be Rostered to receive Multi
dial Alarm Call.
10. Temporary SMS Entry Code can be
allocated for Single Use Casual User or Day use.
11. Recovery Code for Transfer ownership
code or Lost phone.
12. Entry and Exit are by SMS call
“open” or “close”. However, Three Ring
Entry can also be selected with phone ID as security.
13. Open and Close Reports to master
option; Key switch input can connect to alarm panel
14. Members can be Listed and
Deleted anytime remotely by SMS.
15. All Parameters, trigger report
Labels, Address and timings can be set up by simple SMS commands remotely.
16. Test report can be SMS requested
to report Signal Strength, Power status, Alarm Input status, Key switch
status and Address.
17. Three colour LED on the Unit
gives diagnostic indication Status and Activities.
18. Flash firmware updates or
computer programming and customer backup using usb connection to PC and
standard legacy programs such as notebook and HyperLink, TerraTerm and any
other Terminal program. A Security code can be used to protect data.
19. SECURITY is guaranteed by Caller
ID and by Access code for data and setup access.
20. Multiple trigger calls limit for
runaway protection, 5calls in 24hr or set for up to 25 max
21. Simple to Setup by SMS, USB to
PC. By BlueTooth to PC tablet or Smart Mobile
22. Setup by PC uses Templates and
easy menu with As You Go instructions
Can be connected to a computer by USB or BLUETOOTH,
QUICKSTART THE 3GEASY
MODULE
Starting at factory Initial
setup with a activated SIM card, the module is
powered up and Red led flashes, then Flashing Orange led is attempting
connections. Wait 10 seconds for the GREEN Led to flash (at 3
secs) to indicates logged on to the mobile network provider. Then your Master mobile
phone should be ready for use. RED LED at startup, not connected to
module SIM5216 ORANGE LED short flashes while trying to
connect to network 30 seconds to connect. GREEN LED short
flash each 3 secs Network connected OK BLUE LED fast flashes for 10 seconds on
accepted commands. RED LED
long 5 sec flash for error or not acceptable STARTUP and Master Pairing
COMMAND If the Sim is activated then
upon plugging in the charger the Green led should start to flash every 2
seconds then you are successfully connected. The first mobile
incoming call is registered as the MASTER, when the message START is accepted on
a new or factory reset Unit; Also known as
PAIRING . The Master phone number is
automatically programmed and Input1 and Input2 Alarm Triggers are set for immediate
entry/exit access or 4 sector actuation reports. Your 3GEasy is now able to, (1)Operate Access relays , (2)report Alarms, (3)send Test calls upon request
with no more programming.
For more sophisticated or
professional applications see more below This unit uses the caller ID mobile number for all activations
to guarantee security. PROGRAMMING
COMMAND LIST USING SMS SETUP
Yellow marked commands are initial setup
and Master pairing. Green
marked commands can only be issued from the Master Mobile Phone, Blue is for Access commands
for all registered Member Phones . All SMS setup commands are not
case sensitive. For convenience low case can be used on Phone. When
sending SMS commands don’t key in a new line at the end of the message.
PROGRAMMING BY DIRECT ENTRY
PC/or BLUETOOTH TERMINAL APP
By
using Computer or Pad usb or BlueTooth connect through a terminal program
(TeraTerm recommended) a programming template allows reviewing data or
entering and changing any dater or member numbers safely within the protected
template.
PROGRAMMING BY UPLOADING A DATA SHEET BY PC/or
BLUETOOTH
Introducing a
new novel method of programming
and hard copy backup by using Computer or Tablet through USB or
BlueTooth connect using a generic terminal program (TeraTerm recommended) a
pre entered program notepad text file can be uploaded, this sheet is also a
program hardcopy backup and allows quick recovery or changes to large
programming data in seconds. DownLoad a
sample text customer programming text
file
The data in the square brackets
can be edited to your program options and member phone numbers; then using USB
or BlueTooth and TeraTerm for a quick programming upload and
also this is your backup copy of settings and member or client numbers. -----------------------------------------------------------------------------------------------------------------------
New
Commands can be implemented by request. firmware updates will be
available via Internet and email. Maximum relay contact current is 30 volt at 2 amp, For 240 volt switching use separate
powered isolation relay or solid state device
installed by a licenced electrician. For advanced programming
options, monitoring of communications and technical diagnoses AND new program
Flash update, and USB connecting to Laptop or PC computer.
please refer to the
TECHNICAL
PROGRAMMING GUIDE
Firmware updates or new features can be sent by email and Flash installed by
connecting usb OR BT Terminal to computer no special equipment needed A programming template can be
set up in notepad and sent by ordinary terminal program (HyperLink or
TeraTerm) to the 3GEasy unit via the usb connection. A custom modification unit can
be used as a Base Station Unit to record all alarms and Alerts to computer.
|
|
|
